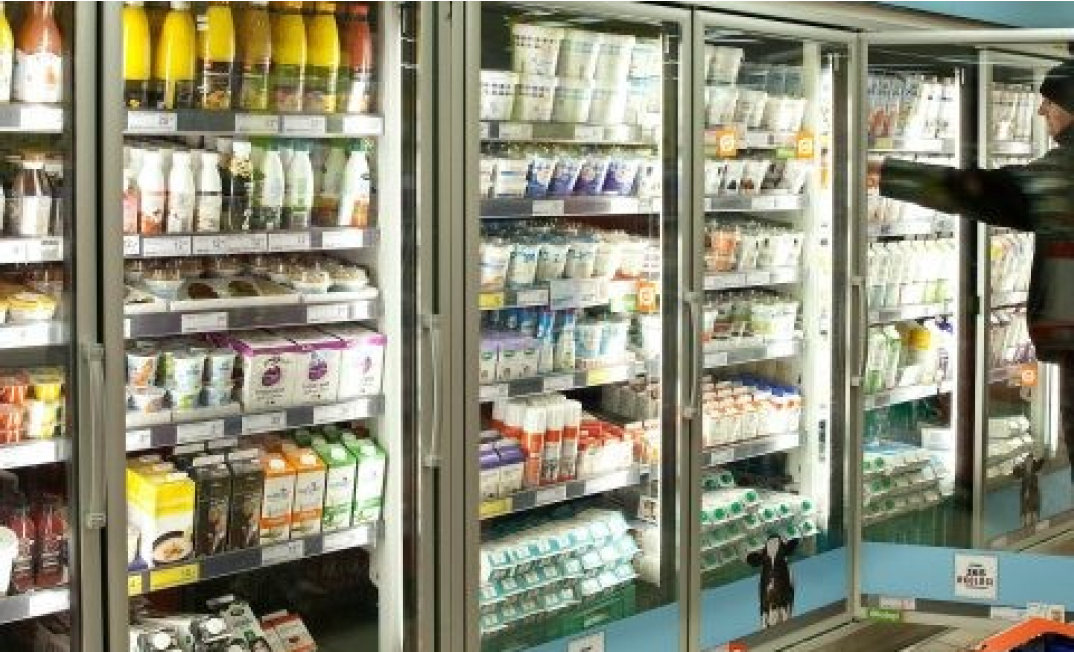

Figure 1. Refrigerators at a supermarket. Source: http://supersupermarkets.dk/

This case study is part of a project catalogue produced by ReUseHeat to provide inspiration on how to utilize excess heat from urban sources for heating and cooling purposes. The catalogue contains 25 existing or planned projects out of which 12 cases are Danish and 13 cases are from other European countries.

Description

The aim of the project is to evaluate, demonstrate and implement the possibilities of utilizing supermarket refrigeration systems as sources for district heating networks. Different tasks examine the potential of recycling heat from refrigeration systems and use the demand side of flexibility to fulfill three sub-goals:

1. Recycling heat from cooling operations for in-house use and export to district heating networks

The sub-goal is to develop and demonstrate a best practice for recycling heat based on experience of already installed systems and extensive knowledge from project partners. This way, the newest knowledge from cooling, heating and legislative sources are combined and 10 to 15 feasibility studies are carried out to examine the potentials.

2. Use of heat pump capacity in supermarkets for district heating production

In Denmark 2684 supermarkets have an installed heat pump/cooling capacity of approximately 400 MW, however, only 30% of this capacity is used. The spare capacity has a potential as decentralized district heating production.

3. Optimize power consumption through increased power market flexibility

The sub-goal is to investigate and potentially demonstrate cooling systems designed for selling power system services. Multiple supermarkets can be aggregated to represent a larger power system service.

Existing supermarkets and district heating companies are examined in three demonstration projects:

There is a large potential in replacing current refrigerator systems with CO2 cooling and refrigerator systems. Hereby, gas cooling temperatures are increased, and excess heat can be utilized directly in the district heating network. There is accordingly no need for extra heat pumps to increase the temperatures. Multiple supermarkets in Denmark already use excess heat from supermarkets, there is however still a large unexploited potential. The heat harnessed from a supermarket typically correspond to the annual heat consumption of 20 ordinary Danish households.

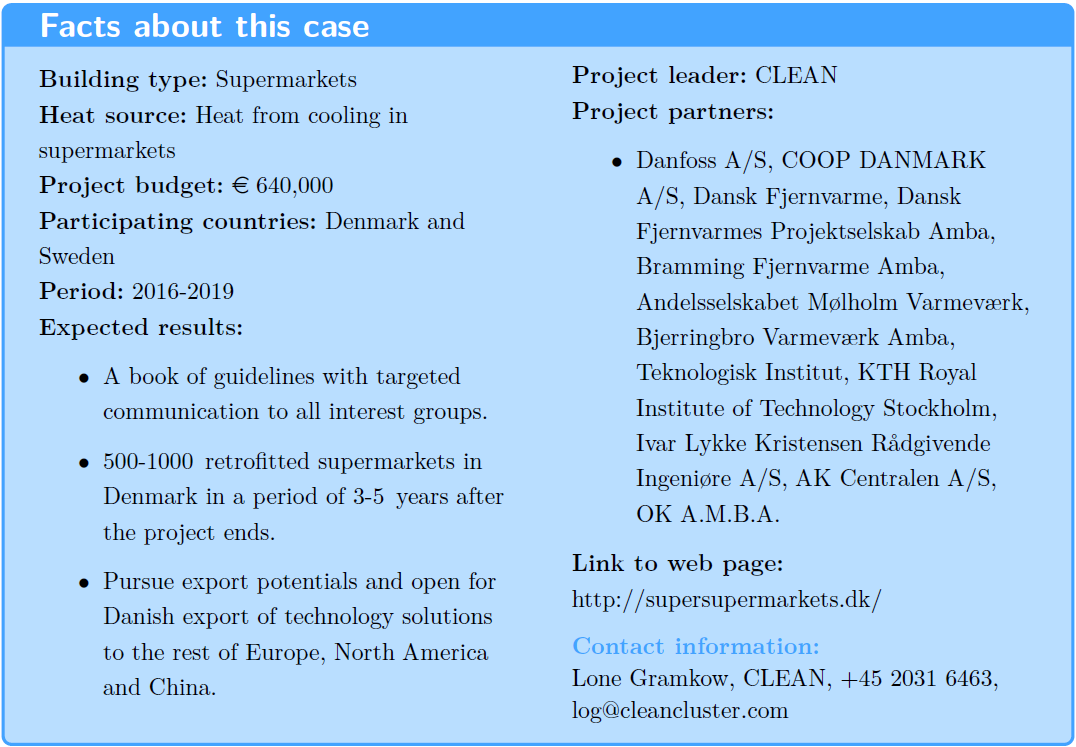

City

Participants from Denmark and Sweden

p

Project

Time plan

2016 – 2019

Stakeholders

Danfoss A/S, COOP DANMARK A/S, Dansk Fjernvarme, Dansk Fjernvarmes Projektselskab Amba, Bramming Fjernvarme Amba, Andelsselskabet Mølholm Varmeværk, Bjerringbo Varmeværk Amba, Teknologisk Institut, KTH Royal Institute of Technology Stockholm, Ivar Lykke Kristensen Rådgivende Ingeniøre A/S, AK Centralen A/S, OK A.M.B.A.
